Discrete_component_Darlington_audio_amplifier

Published:2009/7/22 4:21:00 Author:Jessie | From:SeekIC

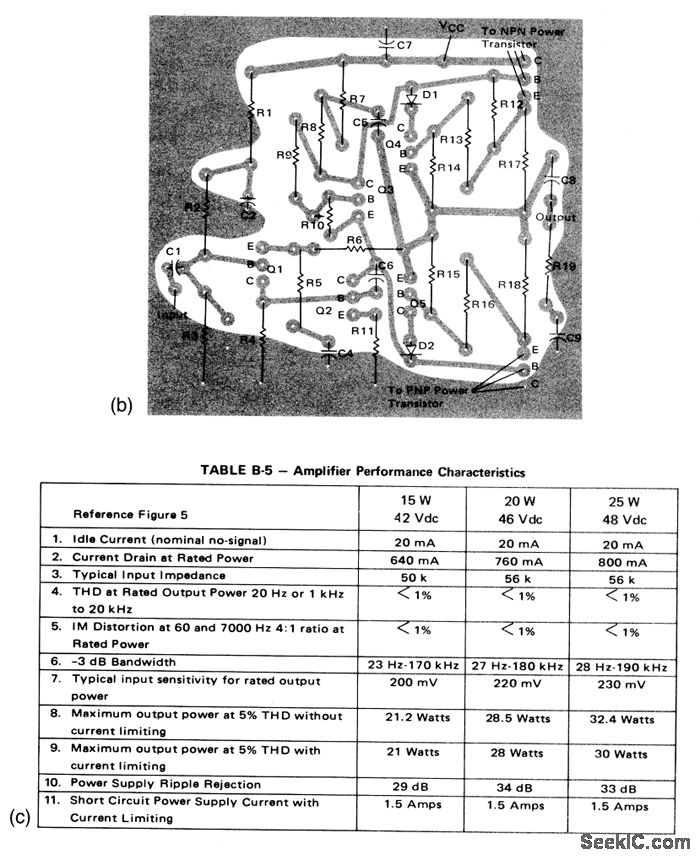

This circuit provides a 15-, 20-, or 25-W output, depending on the power source and component values (as shown), with overload protection, using Darlingtons in the output stages. Figures 1-20B and 1-20C show the PC-board layout and performance characteristics, respectively.
