DRIVER

Published:2009/7/24 3:18:00 Author:Jessie | From:SeekIC

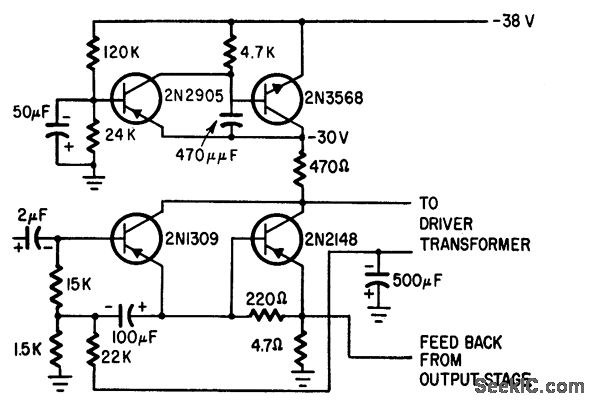

Upper pair of transistors provides voltage regulation, filtering, turn-on time delay, and decoupling for audio driver transistors below.-S. Messin and T. E. Nawalinski, A Solid Stale Stereo Set Built in Modules, Electronics, 38:16, p 88-92.
