CRYSTAL_CONTROLLED_BLOCKING_OSCILLATOR

Published:2009/7/24 4:56:00 Author:Jessie | From:SeekIC

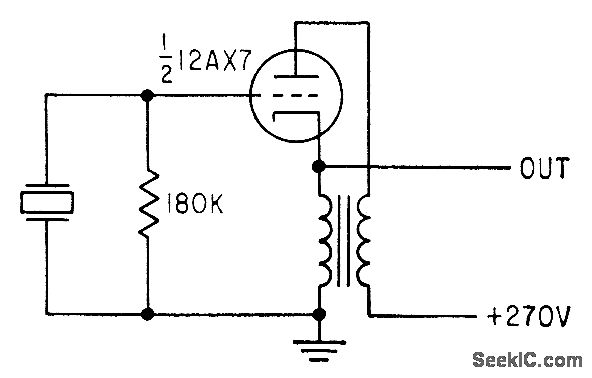

Used for recording 50-kc reference base on magnetic tape in 10-channel instrumentation system. Circuit is ordinary plate-to-cathode coupled blocking oscillator with crystal substituted for capacitor. If free-running frequency (without crystal) is lower than crystal frequency by no more than 40%, oscillator locks to crystal frequency.-P. S. Gengston, Blocking Oscillator is Crystal Controlled, Electronics, 31:25, p 88-90.
