BINARY_COUNTER

Published:2009/7/13 23:26:00 Author:May | From:SeekIC

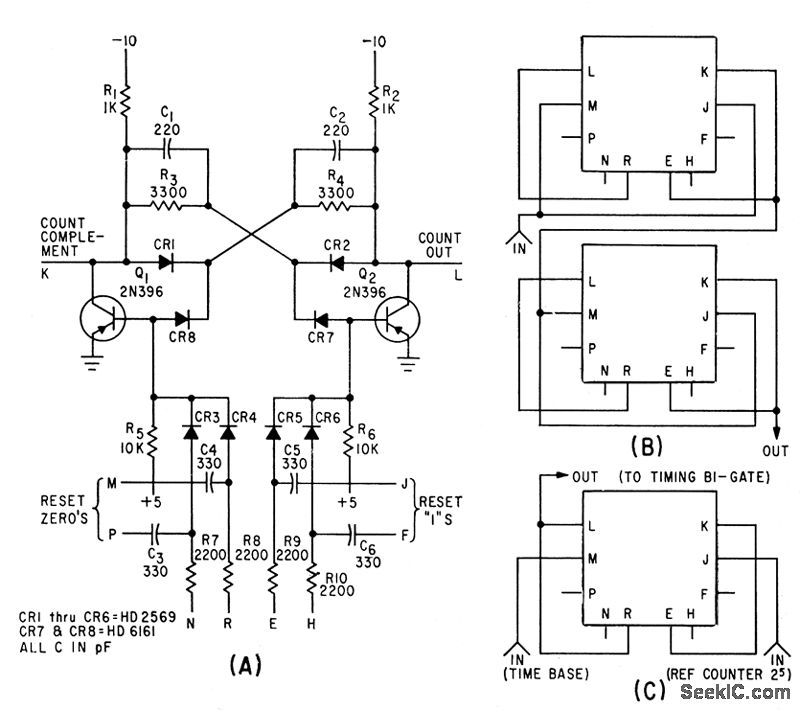

Basic binary circuit can be used alone as at A for counting up to 130 kc. Two circuits connected as at B give lip-fop operation, while one circuit with external connections as in C serves as bistable gate.-K. H. Brackney und D. R. Gosch, Pulse Comparator Circuit Measures Frequency Jitter, Electronics, 34:27, p 54-56.
