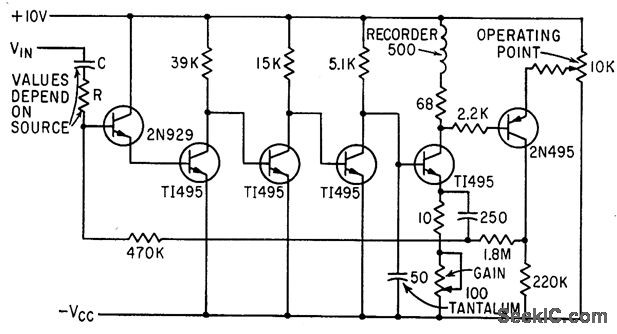

BANDPASS_AMPLIFIER_DRIVES_RECORDER

Published:2009/7/20 1:08:00 Author:Jessie | From:SeekIC

Feedback from final stage to input sets bias level of direct-coupled ac amplifier having current-derived stabilization, for driving re carder over range of 0.2 to 5 cps, with no bulky capacitors.-P. Laakmann, Direct Coupling Shrinks Amplifier Size and Cost, Electronics, 36:12, p 66-68.
