BA6029,BA6209N,BA6209U,BA6209V-The speed-stable circuits of TV sets

Published:2011/5/17 22:27:00 Author:Borg | Keyword: speed-stable circuits, TV sets | From:SeekIC

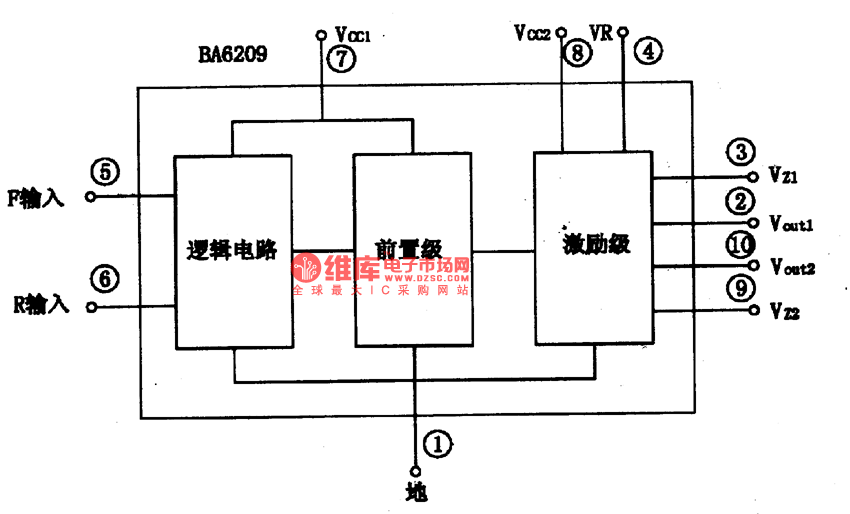

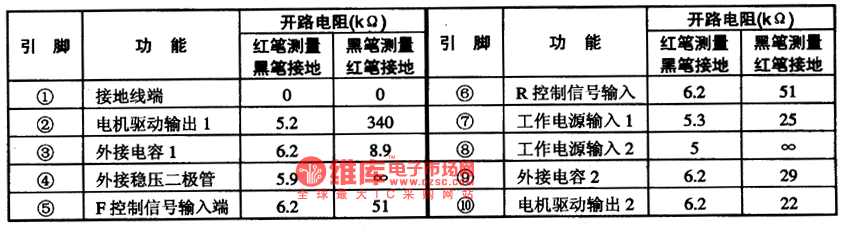

BA6029,BA6209N、BA6209U、BA6209V are speed-stable circuits of TV sets, which are produced by Toyo Corp.,Japan. It is used to drive tape motors, principle motors and tape winding motors, ordering them to stop or wind/rewind. All the internal circuits and typical application circuits of these integrated circuits are almost the same, except for the few differences in packages and parameters. The following is BA6209 as a example.1.The internal circuit and pin functions of BA6209BA6209 can drive motors directly and afford the curren of 1.5A.
