AUDIO_VOLUME_LIMITER

Published:2009/6/15 23:12:00 Author:May | From:SeekIC

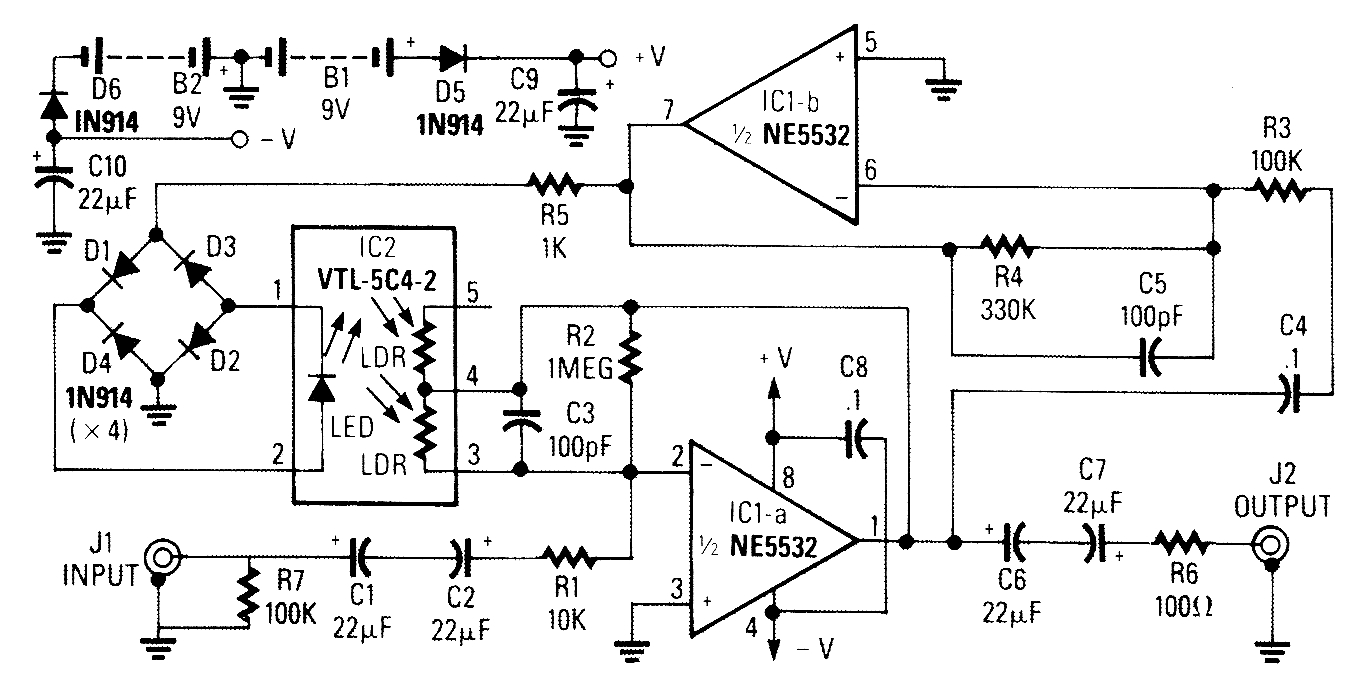

IC1-a is connected as an inverting amplifier whose gain is controlled by the LDR portion of an op-tocoupler.
