AUDIO_SQUELCH_CIRCUIT

Published:2009/7/5 22:00:00 Author:May | From:SeekIC

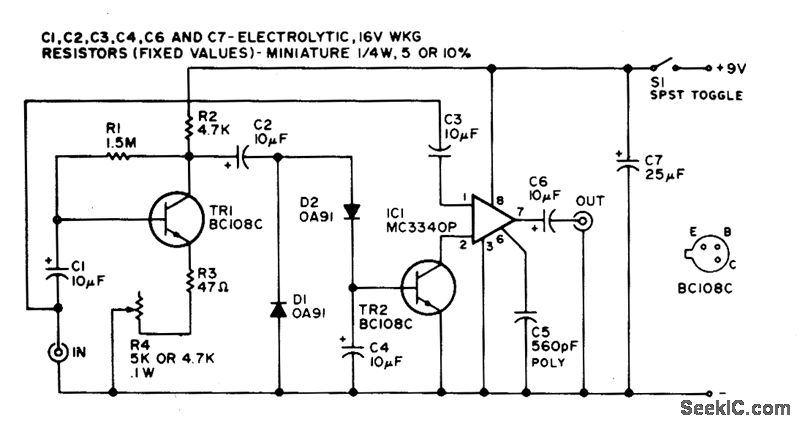

This simple audio squelch unit suppresses all input signals below a preset threshold.
