AUDIBLE_VOLTMETER

Published:2009/7/16 20:55:00 Author:Jessie | From:SeekIC

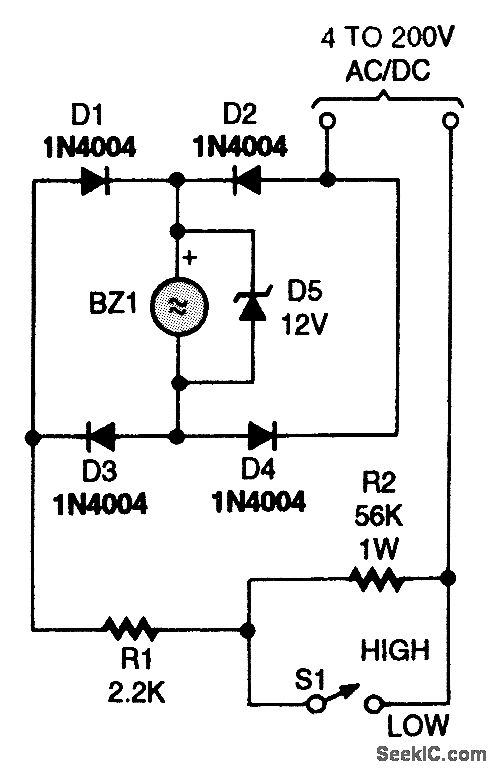

The audible voltmeter can be used to test for ac or dc voltages in a circuit. With S1 closed, the circuit can be used to test for voltages between 4 and 24 V. When S1 is open, it can be used to check for the presence of voltages of up to 200 V
