3 Light-operated Silicon-controlled Zero Passed Switch Circuit

Published:2011/5/6 7:32:00 Author:Sue | Keyword: Light-operated, Silicon-controlled, Zero Passed, Switch | From:SeekIC

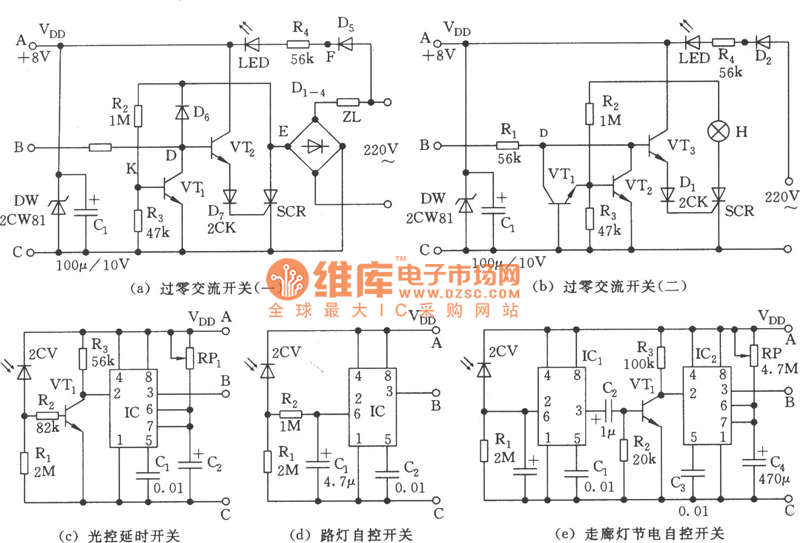

(a)Zero passed alternating current switch (1) (b)Zero passed alternating current switch (2) (c)Light-operated time-delayed switch (d)Street lamps automatic control switch (e)Corridor lamps energy saving automatic control switch
