35__50__60__75__100_watt_AF_power_amplifier

Published:2009/7/20 21:45:00 Author:Jessie | From:SeekIC

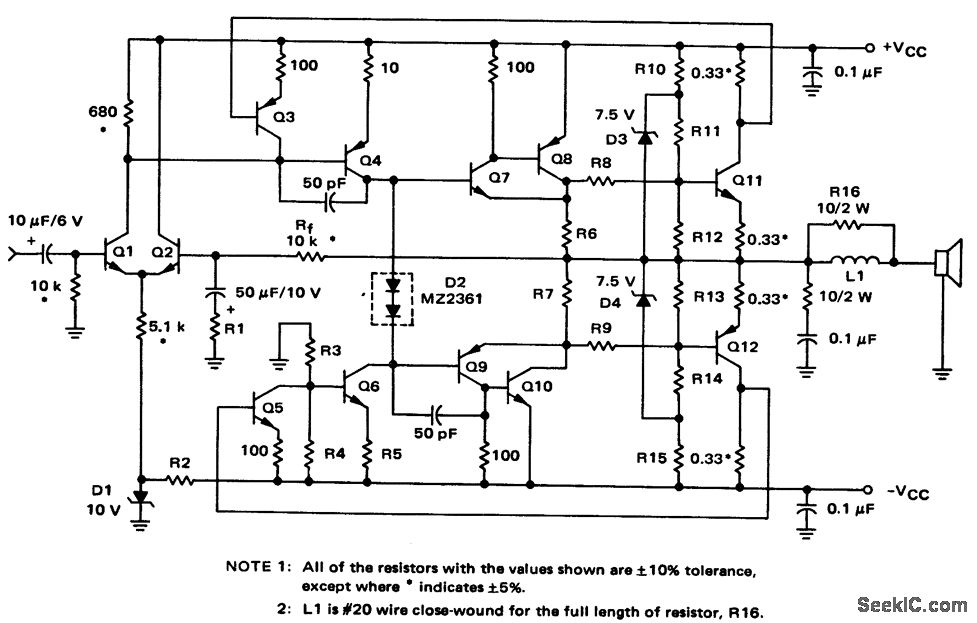

35-/50-/60-/75-/100-watt AF power amplifier (courtesy Motorola Semiconductor Products Inc.).
