28_MHz_TO_144_MHz

Published:2009/7/15 5:15:00 Author:Jessie | From:SeekIC

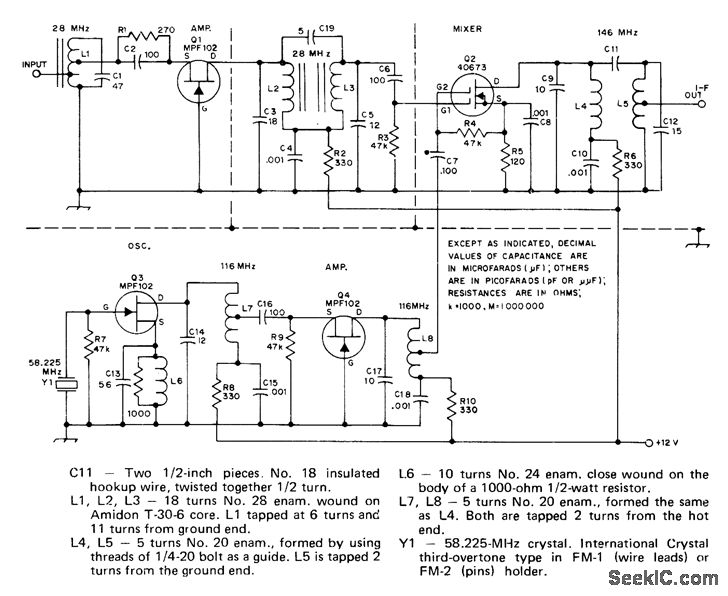

Addition of small upconverter, between 145.85 and 145.95 MHz, is fed verter to 144-MHz (2-meter) SSB transceiver to antenna terminal of receiver.-T. McMullen, permits reception of 10-meter signals from An Up Converter for Oscar Reception, QST, Oscar satellite on single transceiver. Output of March 1975, p 41-44.
