160_METERS_TO_l0_METERS

Published:2009/7/16 3:55:00 Author:Jessie | From:SeekIC

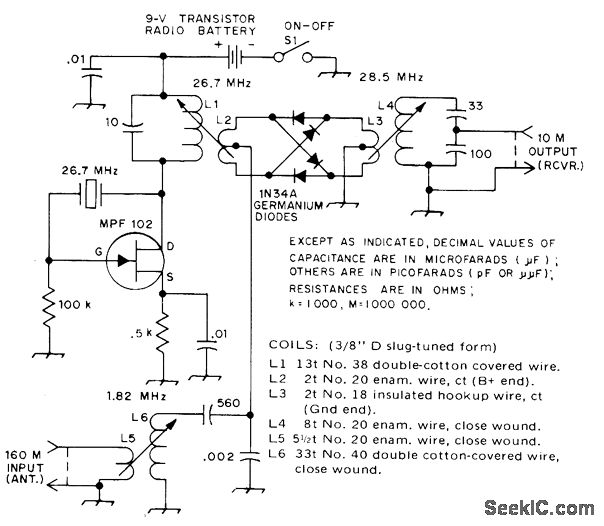

Simple converter adds 160-meter band capability to older CW or AM receiver. Passive mixer is adequate. High output frequency eliminates IF feedthrough and image signals. Crystal oscillates on third over-tone and feeds directly into mixer. -A. Bloom, A Simple 160-Meter Converter, QST, Feb. 1975, p46.
