144_MHz_TO_28_MHz

Published:2009/7/15 5:22:00 Author:Jessie | From:SeekIC

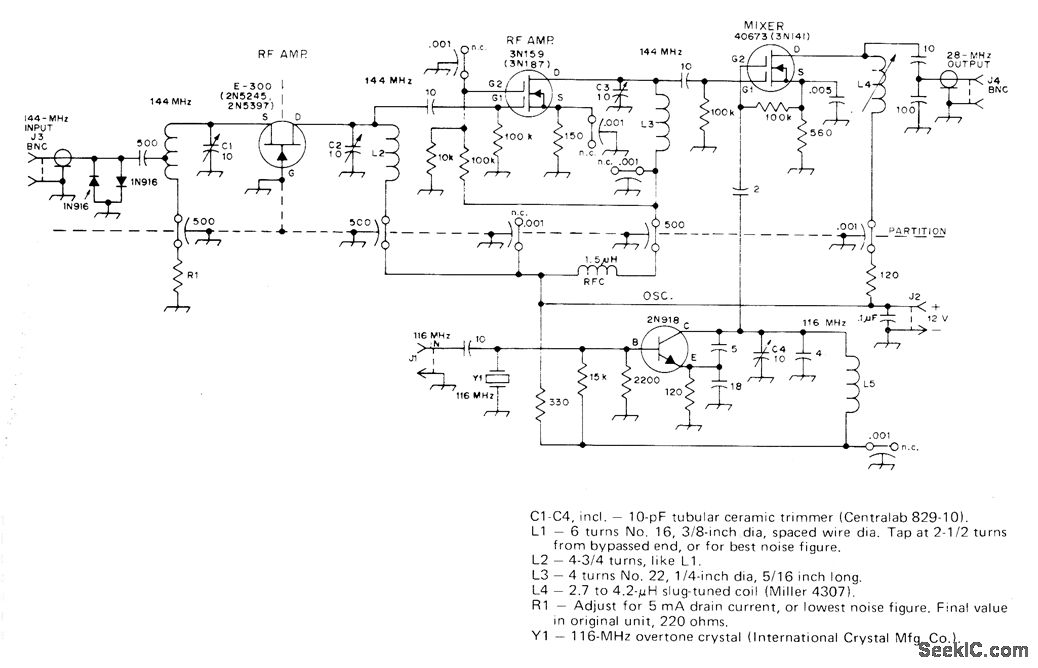

Brings 2-meter band to input range of ordinary amateur receiver. Crystal eliminates need for multiplier stages that can generate spurious responses. Signal can be injected from external source if crystal is re moved. -Construction Hints for VHF Converters, QST, Sept. 1975, p 32-33 and 39.
