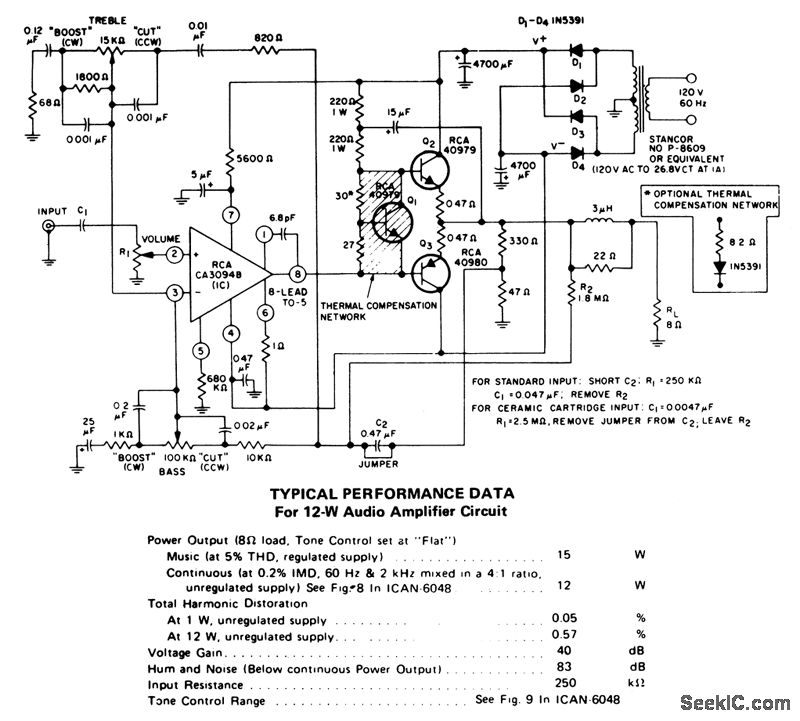

12_W_audio_amplifier_with_discrete_output_and_IC_input

Published:2009/7/22 4:25:00 Author:Jessie | From:SeekIC

This circuit has a true complementary-symmetry output with a programmable IC amplifier input.
