the watchdog and reset circuit in MSP430 SCM

Published:2011/6/1 23:36:00 Author:Ariel Wang | Keyword: watchdog, reset, SCM | From:SeekIC

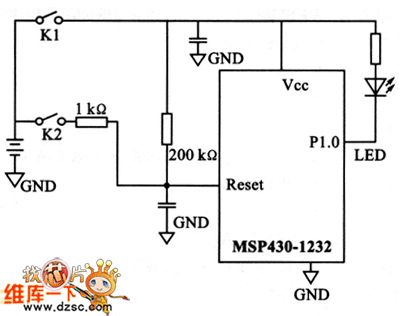

MSP430 series SCM is the new generation developed in recent years by US Texas instruments company(TI). The series is a 16-bitshybrid SCM of new concept with RISC and ultra-low power.It has ultra-low power , inner chip set outside and convenient develop method in lots of SCM series.So it becomes a shining star.It brings watchdog and reset circiut with itself.Theoretically,if the procedure has something wrong,watchdog can do the reset.But in reality,watchdog can't do everything.The experimental circuit is as the chart.
