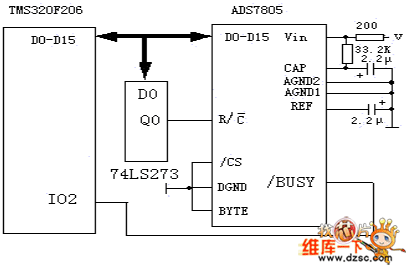

the joint circuit of ADS7805 and TMS320F206

Published:2011/5/29 23:18:00 Author:Ariel Wang | Keyword: joint | From:SeekIC

The 16-bit fixed point DSP TMS320F206 of T1 company is low power device.It adopts improved Harvard structure .It has one procedure base line,3 data base lines,assembly lines and so on.When TMS320F206 externally connects the 16MHZ crystal oscillator ,and the control mode of working clock is ×1,you can connect /CS pin to DSP's /RD signal pin.But in order to reduce the controlling line,you can reduce /CS's pin to low level .You can connect R/C's pin to /RD's signal pin and you can connct R/C's pin to DSP expanding output port.But /BUSY signal can only be connected to common input port.For example,DSP's IO port,expanding chip 74LS244's input port,ect.
