POWER_AMPLIFIER

Published:2009/7/2 1:23:00 Author:May | From:SeekIC

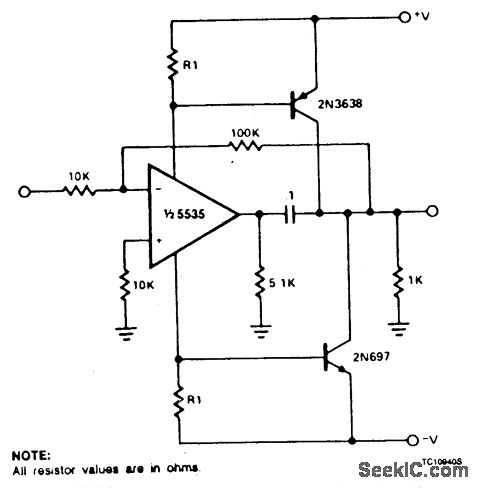

Circuit NotesFor most applications, the available power from op amps is sufficient. There are times when more power handling capability is necessary. A simple power booster capable of driving moderate loads uses an NE5535 device. Other amplifiers may be substituted only if R1 values are changed because of the ICC current required by the amplifier.R1 should be calculated from the expression
