ZERO_HYSTERESIS_SCHMITT

Published:2009/7/23 20:46:00 Author:Jessie | From:SeekIC

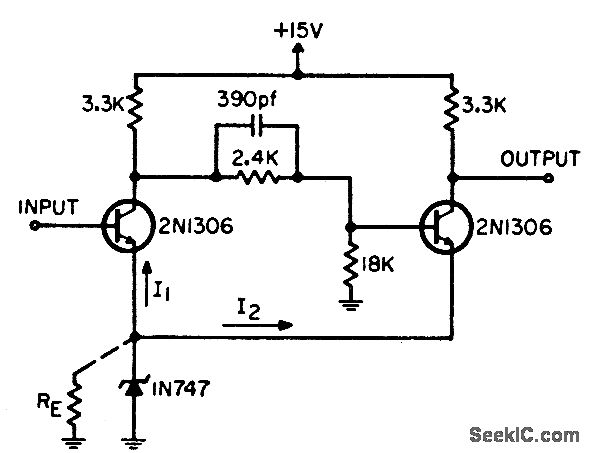

Turn-on and turn-off voltages are made identical by using zener diode in place of RE.-R. A. Wilson, Zero-Hysteresis Schmitt Trigger, EEE, 13:2, p 62.
