WIDE_DYNAMIC_RANGE_DIFFERENTIAL_AMPLIFIER

Published:2009/7/15 5:34:00 Author:Jessie | From:SeekIC

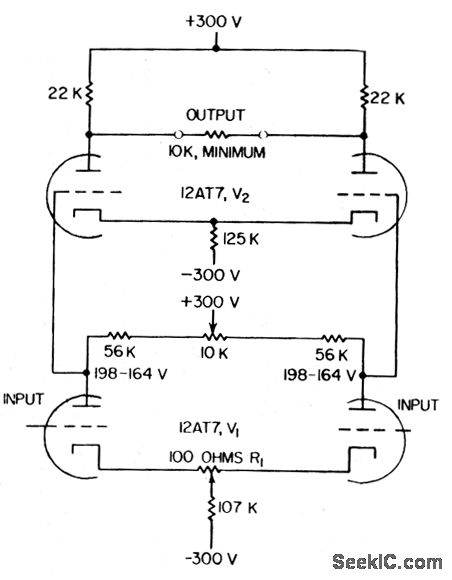

Used in amplifying and measuring small differences between two large voltages, either of which may be up to 100V above ground. Amplification of difference voltage is 250. Frequency response is within 3 db from d-c to 250 kc.-D. D. Davis, High Dynamic Range Differential Amplifier, Electronics, 31:5, p 64-66.
