WIDEBAND_GENERAL_PURPOSE_BUFFER

Published:2009/6/22 22:41:00 Author:May | From:SeekIC

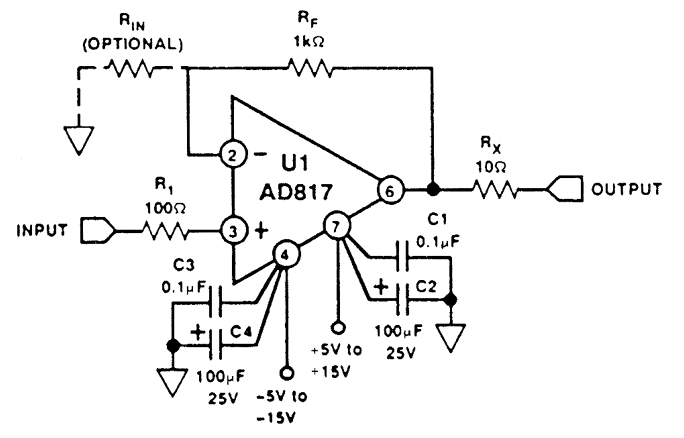

This circuit has unity gain and response up to 70 MHz. UI is an Analog Devices AD817.
