Variable_capacitance_multiplier

Published:2009/7/23 22:38:00 Author:Jessie | From:SeekIC

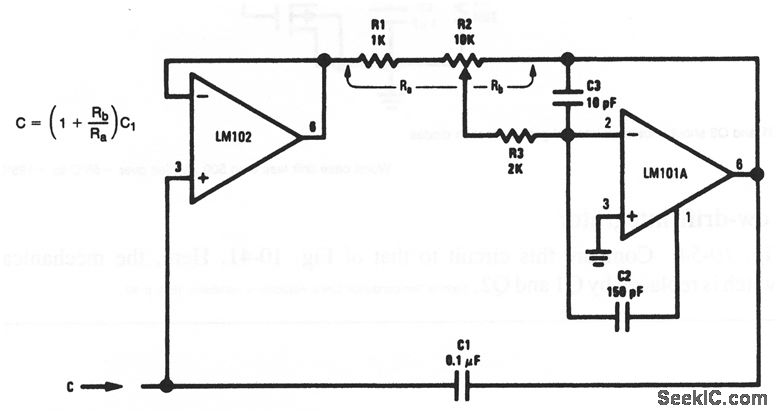

This circuit appears as an adjustable capacitance (set by R2) to the input.
