VOLTAGE_COMPARATOR

Published:2009/6/29 1:50:00 Author:May | From:SeekIC

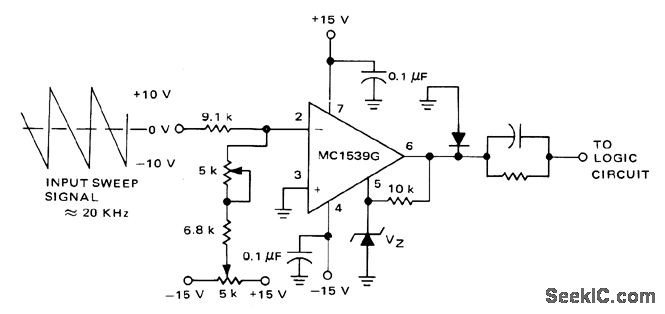

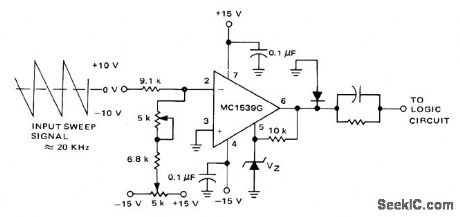

Motorola MC1539 opamp provides excellent temperature characteristics and very high slewing rate for comparator applications. Zener connected to pin 5 Limits positive-going waveform at output to about 2 V below zener voltage. Silicon diode connected to output limits negative excursion of output to give protection for logic circuit being driven. Parallel RC network in output provides impedance matching and minimizes output current overload problems.—E. Renschler, The MC1539 Operational Amplifier and Its Applications, Motorola, Phoenix, AZ, 1974, AN-439, p 18.
