VOICE_ACTIVATED_SWITCH_AND_AMPLIFIER

Published:2009/6/18 22:31:00 Author:May | From:SeekIC

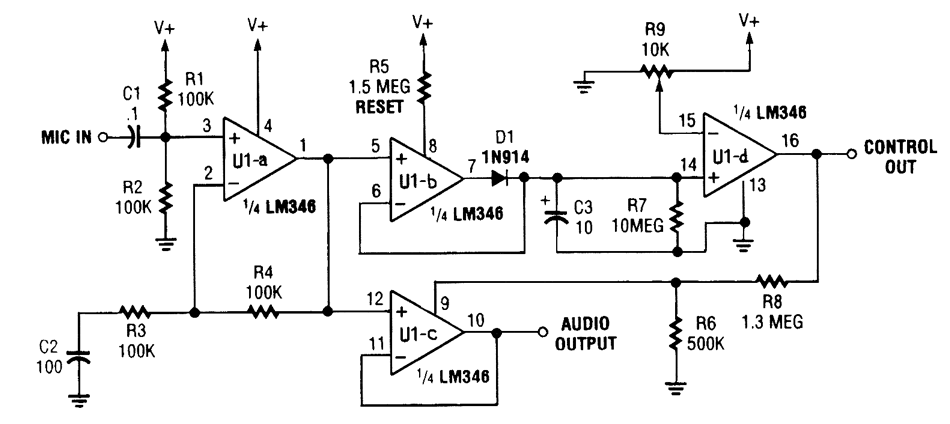

In certain applications, such as transmitter or other communications and control applications, this circuit should be useful. Both audio output and dc control outputs are provided. R9 sets the con-trol threshold.
