VIDEO_I_F_USES_FRAME_GRID_6GK7

Published:2009/7/16 2:50:00 Author:Jessie | From:SeekIC

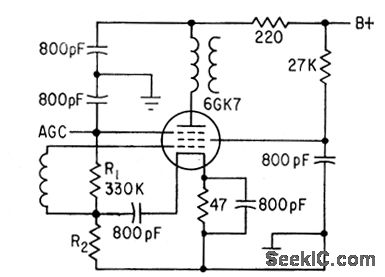

Negative voltage on suppressor controls gain of dual-control sharp-cutoff pentode. Cathode cur rent is independent of agc, and control grid bias automatically adjusts to prevent modulation clipping.-L. Solomon, New Tubes and Circuits for Consumer Electronics, Electronics, 36:2, p 47-49.
