VIDEO_DRIVER_AMPLIFIER

Published:2009/6/24 21:52:00 Author:May | From:SeekIC

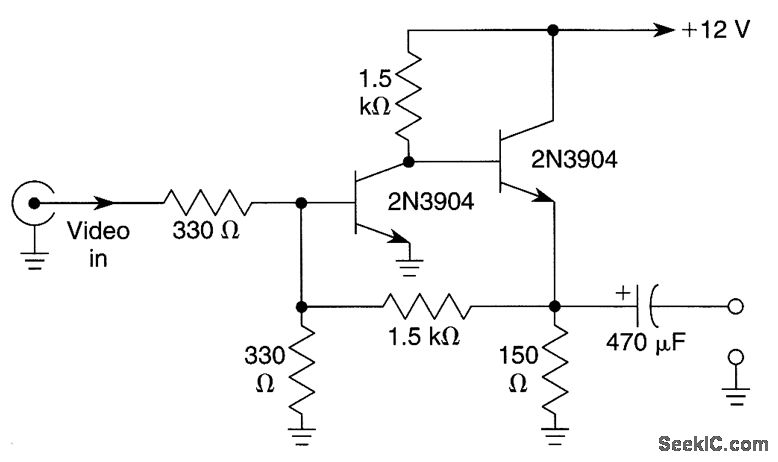

This simple circuit has a voltage gain of about 5x and will drive low-impedance loads (75 Ω) to 1.5 V p-p or better.
