VHF_UHF_PREAMP_USING_MAR_x

Published:2009/6/17 23:17:00 Author:May | From:SeekIC

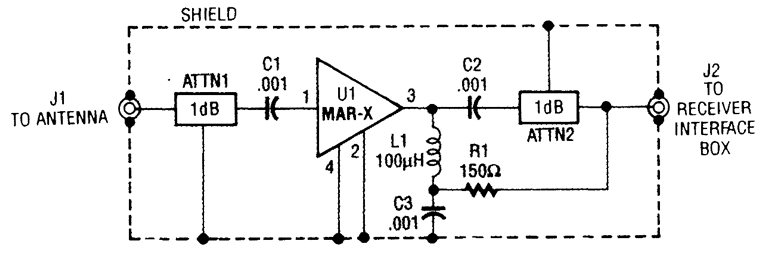

The MAR-x preamp shown will cover up to 1.5 or 2 GHz with the correct MAR-x IC. ATTN1 should be omitted for low noise-figure applications. ATTN1 and ATTN2 provide a means of lirniting possible termination range, for less chance of device instability.
