VHF_PREAMPLIFIER

Published:2009/6/26 4:27:00 Author:May | From:SeekIC

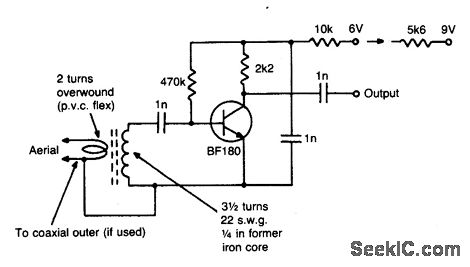

This simple circuit gives 15 dB gain and can be mounted on 1 in 2PCB. Coil data is given for 85 to 95 MHz. For other frequencies modify coil as required.
