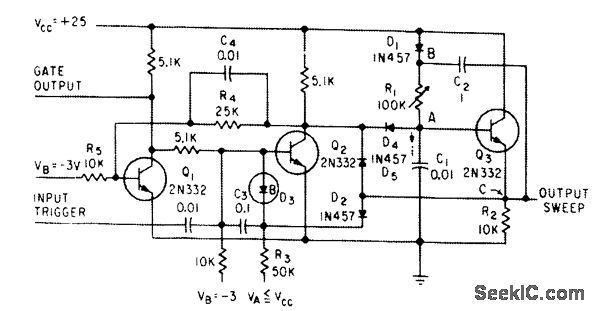

VARIABLE_BOOTSTRAP_FLIP_FLOP_SWEEP

Published:2009/7/24 3:49:00 Author:Jessie | From:SeekIC

Gives same type of waveform as phontastron. Output pulse length can be varied by d-c bitts or by control voltage.-J. B. Payne III, Voltage-Controlled Bootstrap Generator, Electronics, 33:11, p 177-178.
