UNITY_GAIN_VIDEO_SAMPLING_AMPLIFIER

Published:2009/7/23 22:22:00 Author:Jessie | From:SeekIC

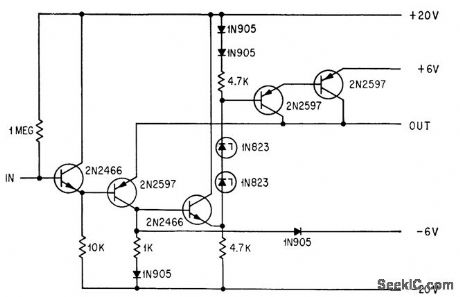

Five-transistor amplifier delivers high bidirectional current, with bandwidth of 10 Mc, for amplifying incoming radar or other pulse prior to binary conversion.-A. Hakimoglu and R. D. Kulvin, Sampling Ten Million Words a Second, Electronics, 37:6, p 52-57.
