UNITY_GAIN_AF_CURRENT_AMPLIFIER

Published:2009/7/2 20:57:00 Author:May | From:SeekIC

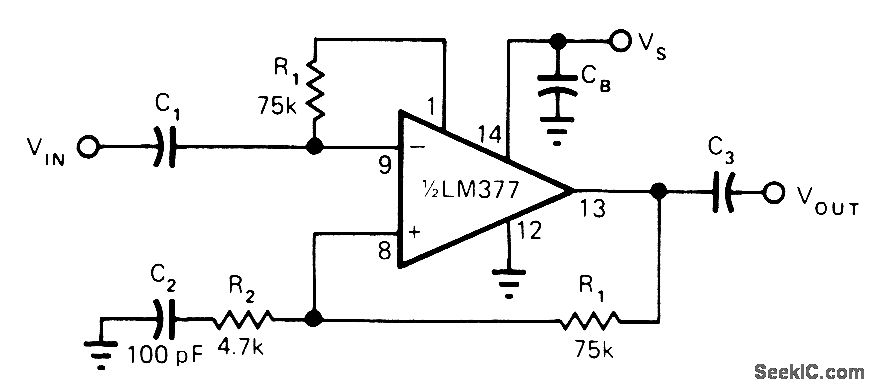

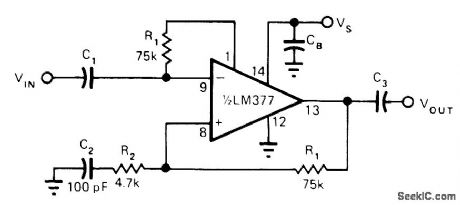

External components are used with National LM377/ 378/379 family of opamps to provide stability at unity gain. Article gives design equations. At frequencies above audio band. gain rises with frequency.to、Mell above 10 at 340 kHz forvalues shown．－D Bohn. AC Unity-Gain Power Buffers Amplify Curren. EDN Magazine. May 5.1977. p113－114.
