ULTRA_HIGH_ZSUBin_SUBAC_UNITY_GAIN_AMPLIFIER_

Published:2009/7/1 4:00:00 Author:May | From:SeekIC

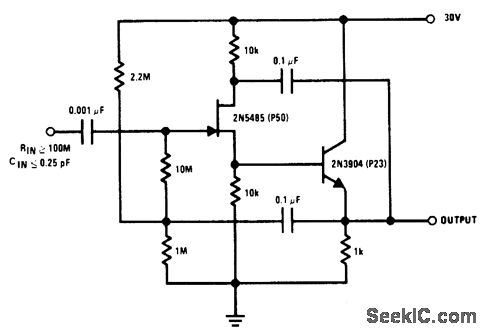

Nothing is left to chance in reducing inputcapacitance．The 2N5485，which has low capacitance in the first place，is operated db a sourcefollower with bootstrapped gate bias resistorand drain.
