ULTRA_HIGH_GAIN_AUDIO_AMPLIFIER

Published:2009/6/24 3:33:00 Author:May | From:SeekIC

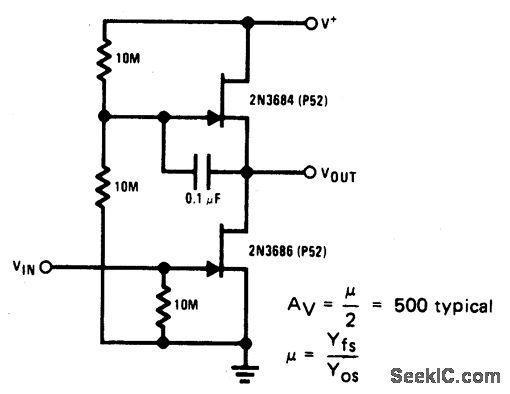

Sometimes called the JFET μt-amp, this circuit provides a very low power, high gain amplifying function. Since pt of a JFET in-creases as drain current decreases, the lower drain current is, the more gain you get. Input dynamic range is sacrificed with increasing gain, however.
