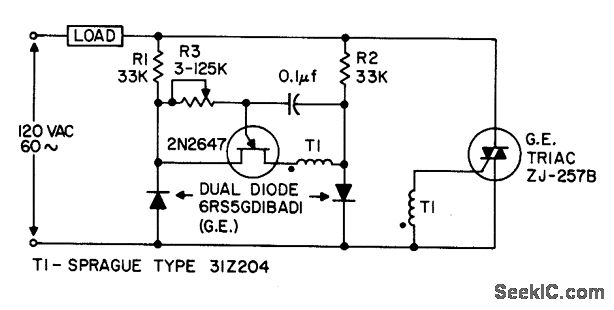

UJT_TRIAC_PHASE_CONTROL

Published:2009/7/23 21:00:00 Author:Jessie | From:SeekIC

Has wide range of stable control, without hysteresis or dependence upon supply voltage. Used in automatic feedback control systems, since ujt is essentially half of balanced bridge, with bulb-in unbalance detection.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 330.
