Three_op_amp_instrumentation_amplifier

Published:2009/7/23 21:11:00 Author:Jessie | From:SeekIC

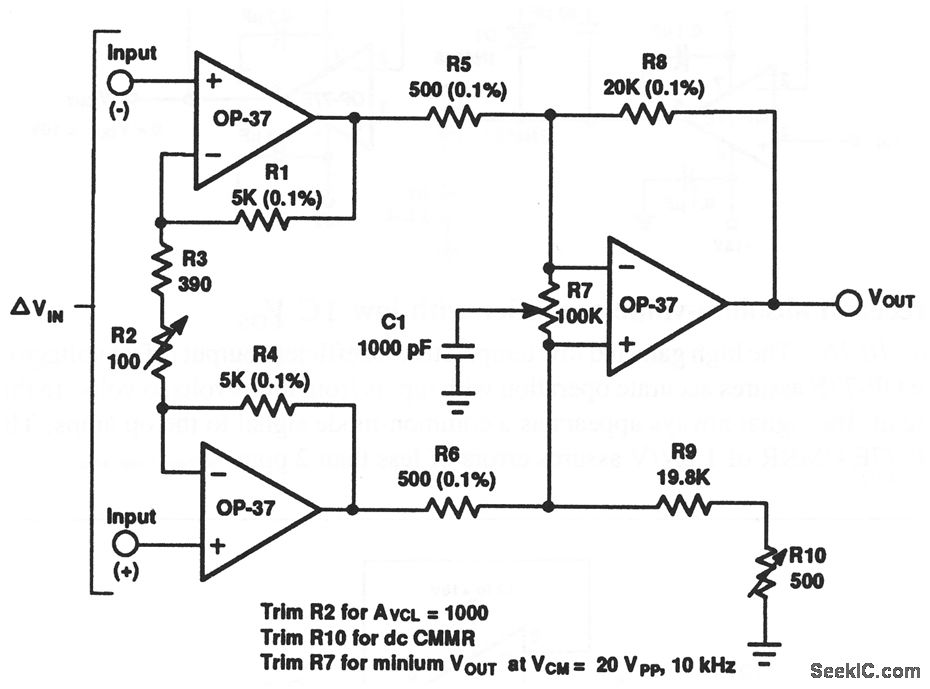

This circuit uses only OP-37 ICs for instrumentation applications, whore low noise, wide bandwidth, low input-offset TC, and low input-bias currents are required.
