The tone changeable multivibrator circuit

Published:2011/7/24 1:57:00 Author:Seven | Keyword: tone changeable multivibrator, circuit | From:SeekIC

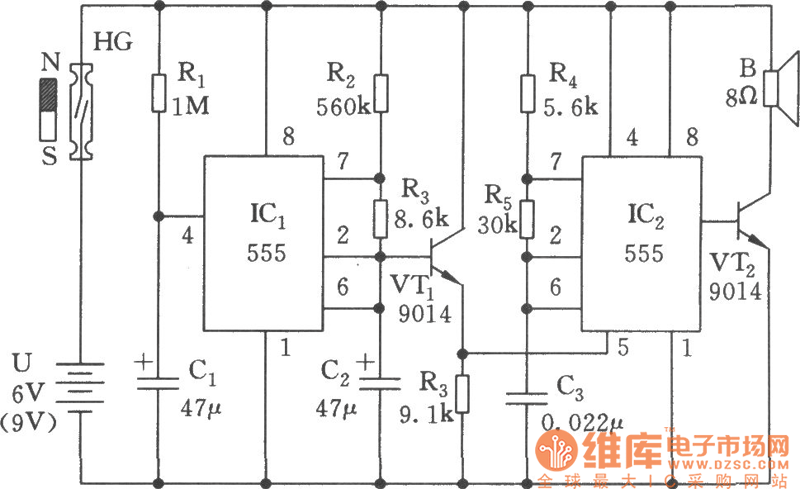

This tone changeable multivibrator circuit consists of the time-based circuit 555, which can emit the continuous changing oscillating wave of 400~2500Hz, like the police car sound. The circuit consists of the starting relay, low-frequency oscillator and modulating audio generator.
