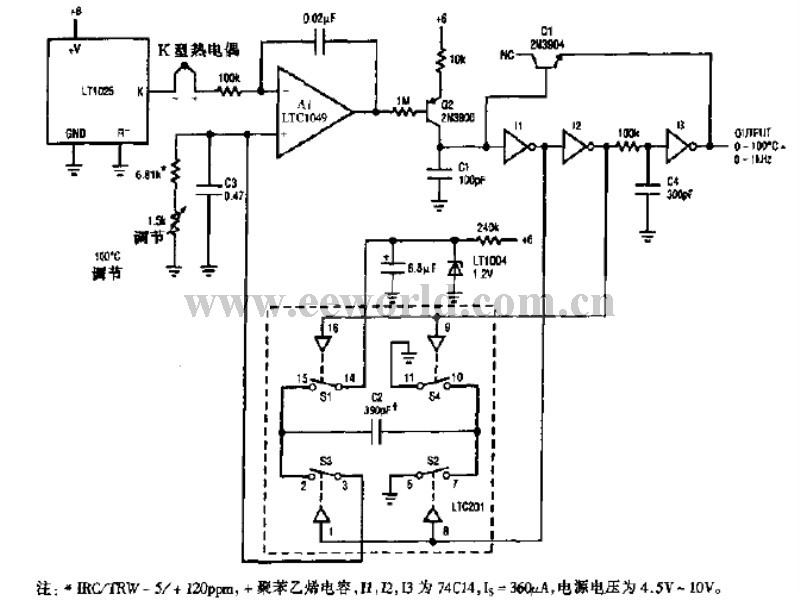

The thermocouple temperature/frequency converter circuit (02)

Published:2011/6/10 3:45:00 Author:Seven | Keyword: thermocouple, temperature/frequency converter | From:SeekIC

Notes: *IRC/TRW -5/+120PPM, +polystyrene capacitor, I1,I2 and I3 are the 74C14, Is=360μA, the voltage of the power supply is 4.5v~10v.
