The thermocouple data collecting circuit

Published:2011/6/3 1:39:00 Author:Seven | Keyword: thermocouple, data collecting circuit | From:SeekIC

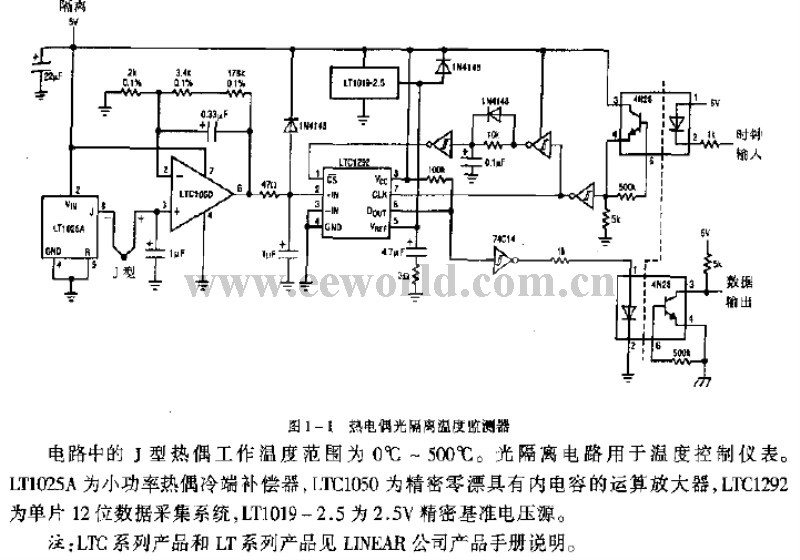

Figure 1-1 the thermocouple light-separation temperature testerIn the figure, the working temperature of the J thermocouple ranges from 0℃ to 500℃. The light-separation circuit is used in the temperature control instrument. LT1025A is a low-power thermocouple cool pole compensator. Lt1019-2.5 is a precision reference voltage source.Notes: products of LTC and LT series are shown in the pamphlets of LINEAR Corp..
