The power amplifier diagram of 600 changing into 3508

Published:2011/11/10 3:28:00 Author:Ecco | Keyword: power amplifier | From:SeekIC

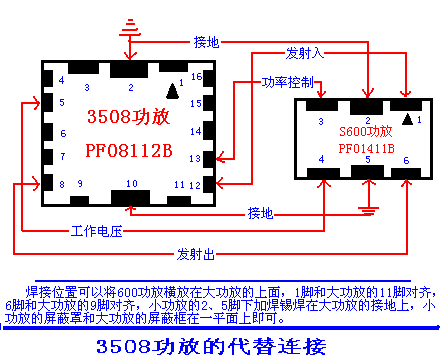

The 600 power amplifier's welding position can be placed across the top of the power amplifier, the pin 1 of small power amplifier and and pin 11 of large power amplifer are put in alignment, pin 6 of small power amplifier and and pin 9 of big power amplifer are put in alignment, and small power amplifier's pin 2,5 are welding and grounded, and the small amplifier's shield and the large power amplifier's shielding box can be on a plane.
