The phonographs amplifier circuit

Published:2012/11/29 21:30:00 Author:Ecco | Keyword: phonographs amplifier | From:SeekIC

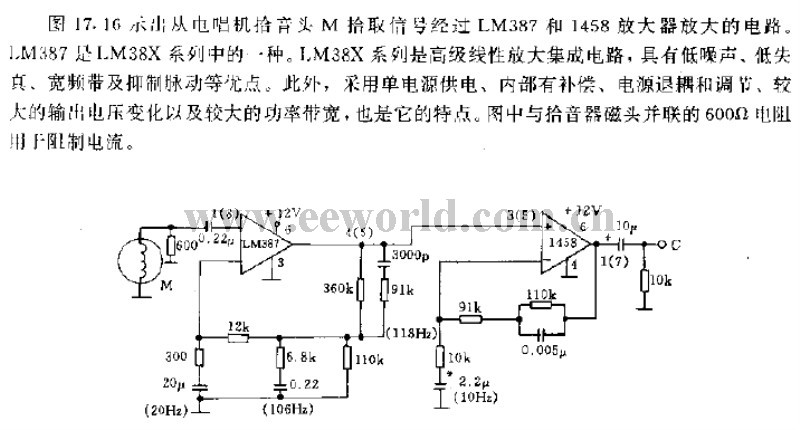

LM387 is one model of LM38X series. LM38X series of products are advanced linear amplifier ICs with low noise, low distortion, wide bandwidth and suppressing fluctuations advantages. In addition, they use a single power supply, internal compensation, power supply decoupling and regulation, larger output voltage changes and larger power bandwidth. 600Ω resistor connected to the pickup head in parallel is used to prevent the current.
