The high quality stereo power amplifier circuit

Published:2011/6/3 0:06:00 Author:Seven | Keyword: high quality, stereo power amplifier | From:SeekIC

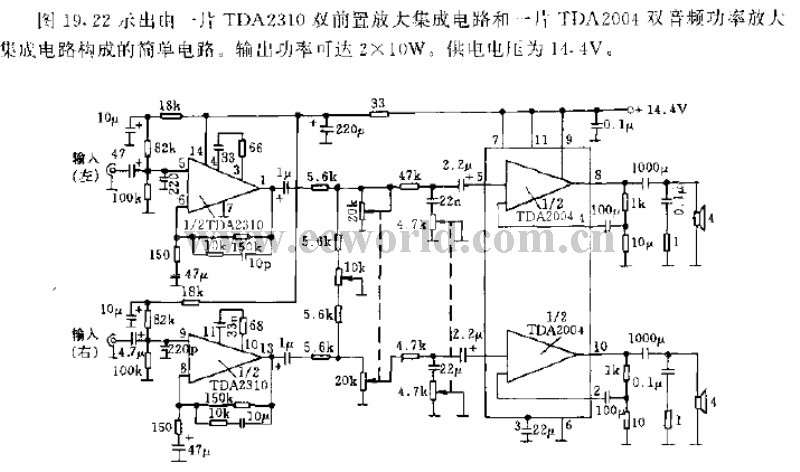

In Figure 19-22 is a simple circuit which consists of a TDA2310 dual preamplifier integrated circuit and a TDA2004 dual-audio power amplifier. The output power may reach 2*10W, and the supply voltage is 14.4V.
