The dual periphery forward OR driver circuit

Published:2011/6/25 5:02:00 Author:qqtang | Keyword: dual periphery, forward, OR driver | From:SeekIC

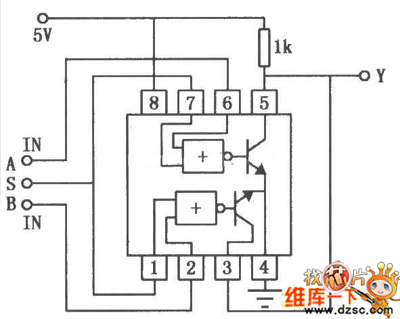

SN55453B/75453B is the OR logic periphery driver whose input terminal is compatible with TTL or DTL, its input current is 300mA, its input voltage is high, and its rotating speed is high. Its typical application circuit is shown in the figure.
