The circuit of high-fidelity amplifier

Published:2012/10/9 22:30:00 Author:Ecco | Keyword: high-fidelity amplifier | From:SeekIC

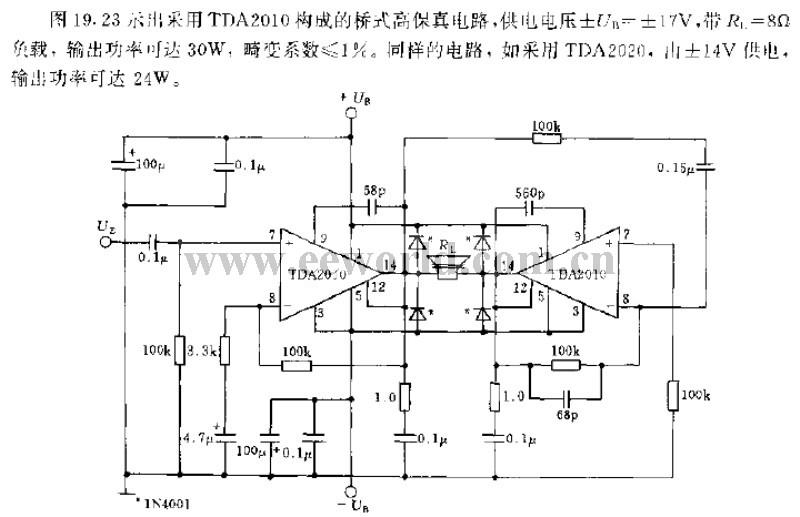

Figure 19.23 shows bridge high-fidelity circuit with TDA2010, and the supply voltage ± UB = ± 17V, load RL = 8Ω, output power can be up to 30W, the distortion coefficient ≤ 1 % . If the same circuit uses TDA2020, ± 14V power supply, the output power can be up to 24W.
