The ZEN headphone amplifier circuit

Published:2011/6/19 21:50:00 Author:qqtang | Keyword: headphone, amplifier circuit | From:SeekIC

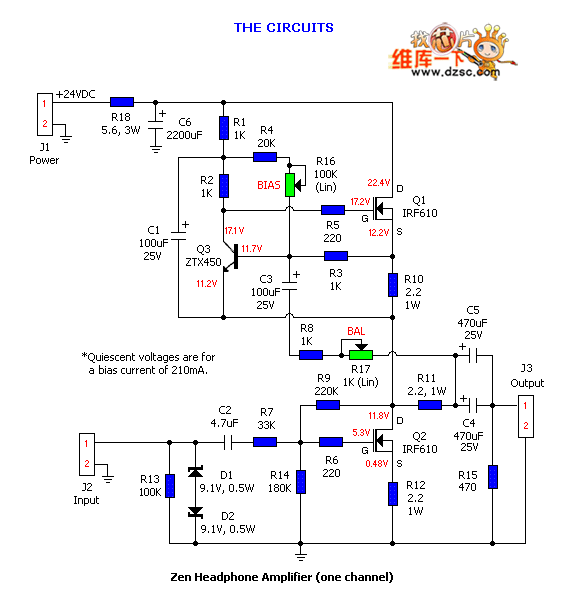

The ZEN headphone amplifier circuit is shown in the figure.
