The TV video amplifier circuit (1)

Published:2011/6/19 20:51:00 Author:qqtang | Keyword: video amplifier | From:SeekIC

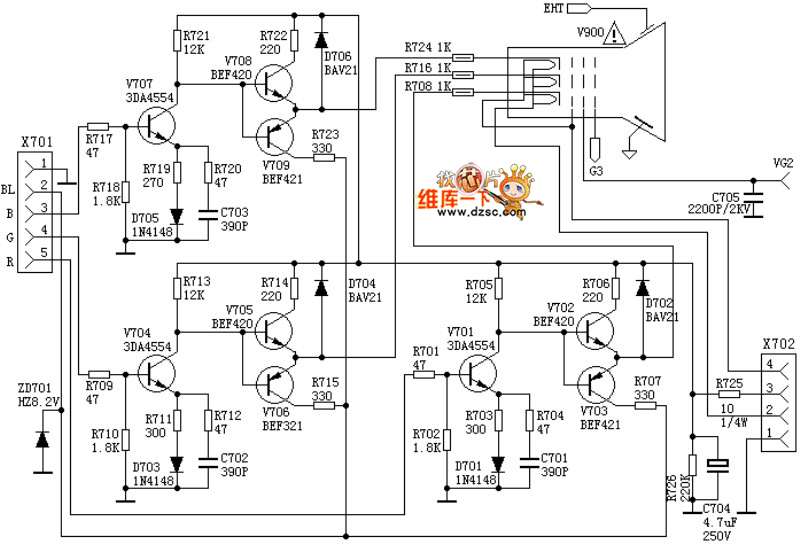

The TV video amplifier circuit (1) is shown in the figure.
