The TC1 vacuum pipe headphone power amplifier circuit

Published:2011/6/19 21:44:00 Author:qqtang | Keyword: vacuum pipe, headphone, power amplifier | From:SeekIC

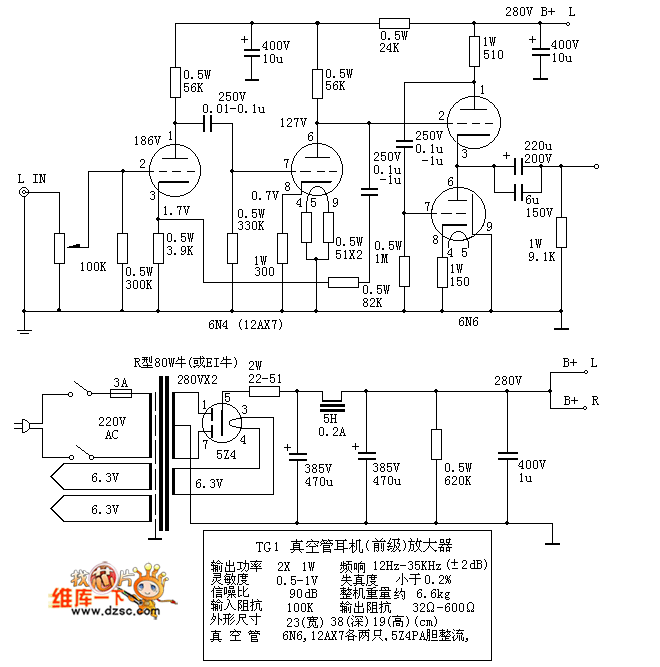

The TC1 vacuum pipe headphone power amplifier circuit is shown in the figure.
