The STK4152 practical circuit

Published:2011/6/20 0:43:00 Author:Seven | Keyword: practical circuit | From:SeekIC

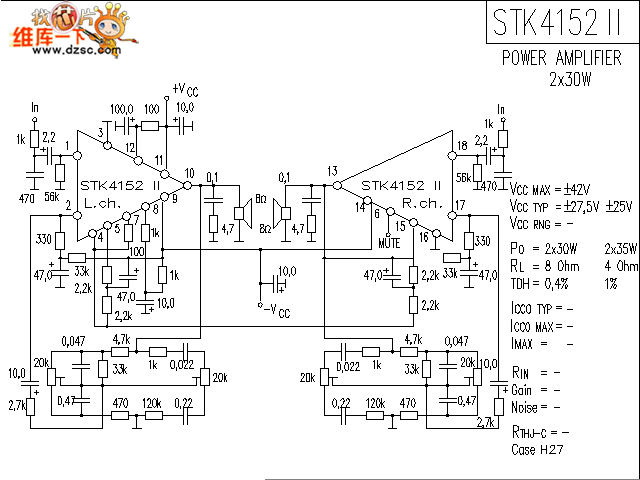

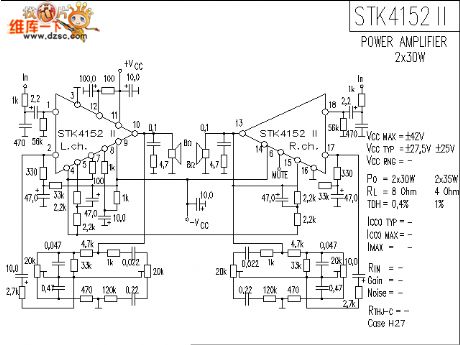

The STK4152 practical circuit is shown in the figure.
