The MOSFET A amplifier circuit

Published:2011/6/23 0:44:00 Author:qqtang | Keyword: MOSFET A, amplifier circuit | From:SeekIC

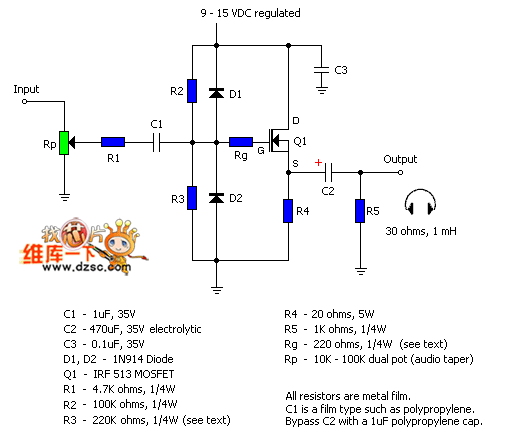

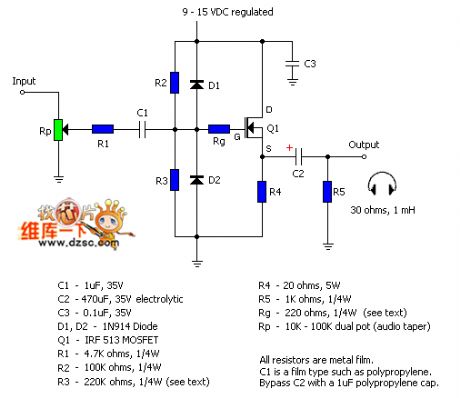

The MOSFET A amplifier circuit is shown in theabove figure. C1-1uF, 35V R4-20 ohms, 5WC2-470uF, 35v electrolytic R5-1K ohms, 1/4WC3-0.1uF, 35v Rg-220 ohms, 1/4W (see text)D1,D2-1N914 Diode Rp-10K-100K dual pot(audio taper)Q1-IRF 513MOSFET R1-4.7K ohms,1/4WR2-100k ohms,1/4W R3-220K ohms,1/4W(see text)All resistors are metal film. C1 is a film type such as polypropylene. Bypass C2 with a 1uF polypropylene cape.
