The Fahrenheit(F) thermometer circuit

Published:2011/6/3 0:26:00 Author:Seven | Keyword: Fahrenheit(F) thermometer | From:SeekIC

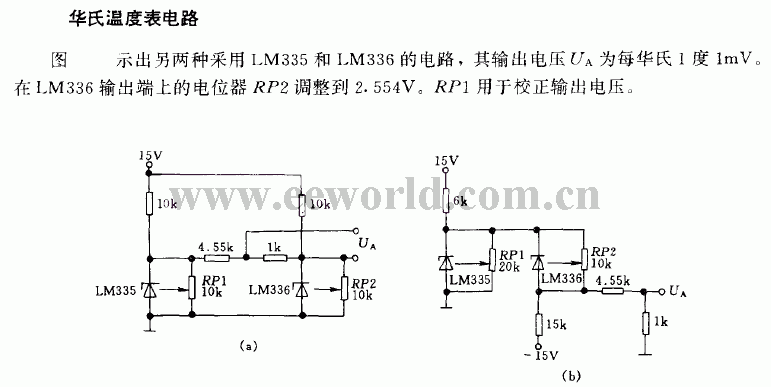

In the figure, there are two kinds of LM335 and LM336 circuit, whose output voltage UA is 1mv/1F.The potentiometer RP2 on the output terminal of LM336 is adjusted to 2.554v, and RP1 is used to adjust the output voltage.
