The CXA1OO5P single chip stereo playback integrated circuit

Published:2011/7/15 19:09:00 Author:Borg | Keyword: single chip, playback | From:SeekIC

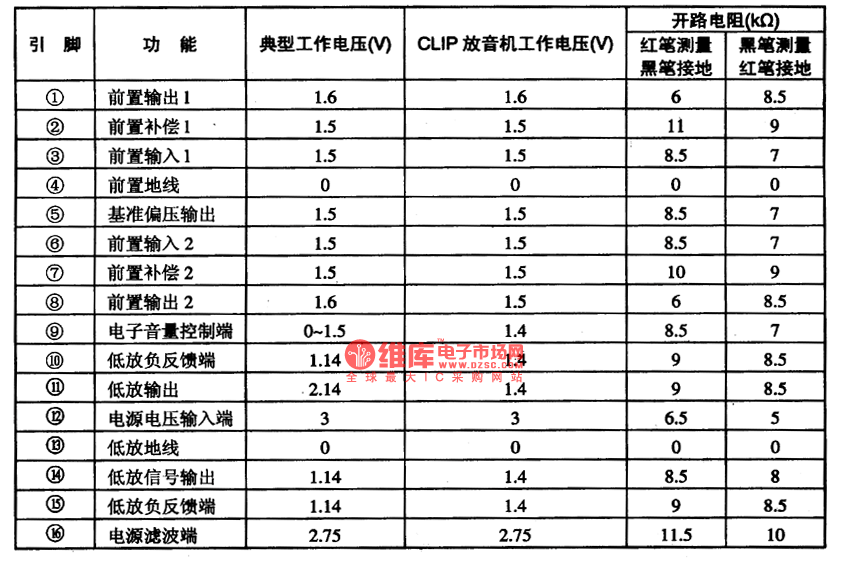

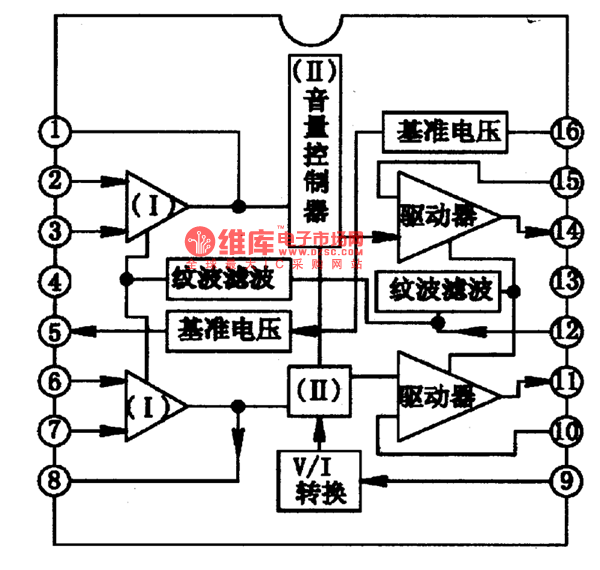

CXA1OO5P is a single chip stereo playback integrated circuit produced by Sony, which is used in ultra-small radios.1.the internal circuit and pin functions of CXA1OO5P CXA1OO5P is manufactured in dual-pole craft, which includes the preset balance amplifier, DC volume control circuit, headphone power drive stage and other function circuits. The internal circuit of the chip is shown in figure 1. The IC is in 16-pin dual in-line package, whose pin functions and data are listed in table 1. table 1 pin functions and data of CXA1OO5P
